The design of the GLA 45 AMG exudes fascination on account of its powerful and distinctive character. As the powerful AMG top-of-the-line model of the GLA class, the high-performance SUV combines the hallmark sensual clarity of Mercedes-Benz as an expression of modern luxury with muscular elements exclusive to AMG. The AMG front apron with front splitter and the AMG "twin blade" radiator grille provide athletic highlights – both are painted matte titanium grey. Completely new: the distinctive AMG lettering at the side between the louvers of the radiator grille. This will make all new AMG models easy to recognize in future. Black flics (air deflector elements) above the large cooling air intakes at the sides are indicative of motor sport. Bi-xenon headlamps come as standard.

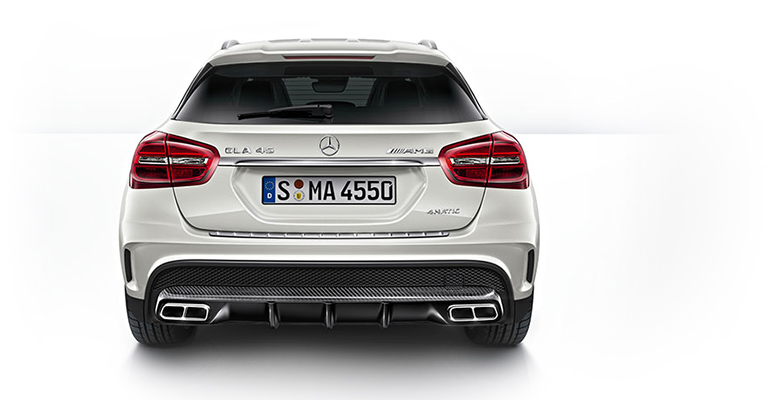

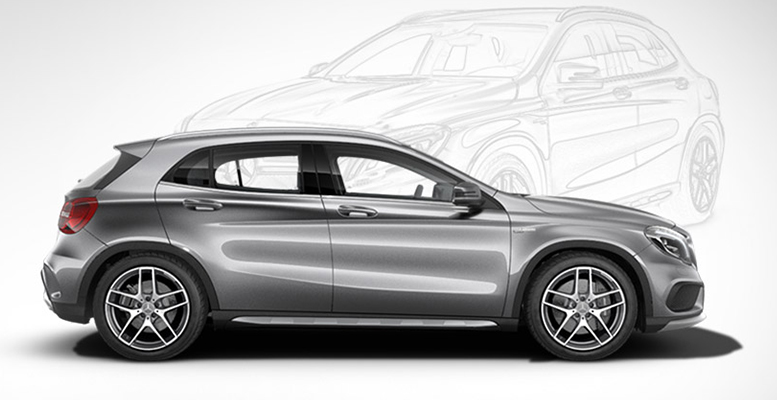

When viewed from the side, the distinctive AMG light-alloy wheels in three design variants catch the eye. The side sill panels with matte titanium grey inserts, the "TURBO AMG" lettering on the front wings and the aluminum roof rails lend the GLA 45 AMG a special touch. The rear end is dominated by the diffuser insert with matte titanium grey trim and by the rectangular, chrome-plated tailpipe trim of the twin tailpipes of the AMG sports exhaust system with exhaust flap.
Exterior FeaturesThe design of the GLA 45 AMG exudes fascination on account of its powerful and distinctive character. As the powerful AMG top-of-the-line model of the GLA class, the high-performance SUV combines the hallmark sensual clarity of Mercedes-Benz as an expression of modern luxury with muscular elements exclusive to AMG. The AMG front apron with front splitter and the AMG "twin blade" radiator grille provide athletic highlights – both are painted matte titanium grey. Completely new: the distinctive AMG lettering at the side between the louvers of the radiator grille. This will make all new AMG models easy to recognize in future. Black flics (air deflector elements) above the large cooling air intakes at the sides are indicative of motor sport. Bi-xenon headlamps come as standard.
The side sill panels with matte titanium grey inserts, the "TURBO AMG" lettering on the front wings and the aluminum roof rails lend the GLA 45 AMG a special touch.
In standard specification the GLA 45 AMG runs on 5-twin-spoke AMG light-alloy wheels painted titanium grey with high-sheen finish, mounted with tires of size 235/45 R 19. As an optional extra from the AMG Performance Studio, customers can opt for larger 10-spoke AMG light-alloy wheels with tires of size 235/40 R 20 – these are available painted titanium grey with high-sheen finish or painted matte black with high-sheen rim flange.
The AMG high-performance braking system with vented, cross-drilled brake discs all-round and grey-painted brake calipers provides for spontaneous and reliable deceleration. Red brake callipers are available as an optional extra.
The AMG sports exhaust system in the GLA 45 AMG features large pipe cross-sections and an automatically controlled exhaust flap: this technology reconciles the two conflicting goals of a dynamic driving experience and hallmark Mercedes suitability for long-distance driving. The flap in the rear silencer is continuously adjusted under map control according to the driver's performance needs, load condition and engine speed. The two rectangular chrome-plated twin tailpipes on the AMG sports exhaust system emit a fascinating exhaust note, which is particularly impressive during powerful acceleration. An AMG Performance exhaust system, also equipped with an exhaust flap, is available as an optional extra. Customers opting for this system will experience an even more appealing and distinctive engine sound.
As in all AMG high-performance automobiles, the interior of the GLA 45 AMG delights with its high-quality appeal, combined with sporty flair and exclusive equipment features. Sports seats in ARTICO man-made leather/DINAMICA microfiber with red contrasting topstitching and red designo safety belts are just as much on board as the AMG DRIVE UNIT. The 3-spoke nappa leather multifunction sports steering wheel with red contrasting topstitching, perforated leather in the grip area and steering-wheel shift paddles allows for perfect vehicle control. The AMG instrument cluster with 2-tube design and central color display, AMG main menu and RACETIMER is on hand to provide information to the driver. On opening the door, the driver is greeted by the AMG start-up screen. The trim of the instrument panel is of brushed aluminum and, in tandem with the brushed stainless-steel AMG front door sills, emphasizes the high-grade, exclusive ambiance inside the GLA 45 AMG.
Interior FeaturesAs in all AMG high-performance automobiles, the interior of the GLA 45 AMG delights with its high-quality appeal, combined with sporty flair and exclusive equipment features. Sports seats in ARTICO man-made leather/DINAMICA microfiber with red contrasting topstitching and red designo safety belts are just as much on board as the AMG DRIVE UNIT.
The 3-spoke nappa leather multifunction sports steering wheel with red contrasting topstitching, perforated leather in the grip area and steering-wheel shift paddles allows for perfect vehicle control.

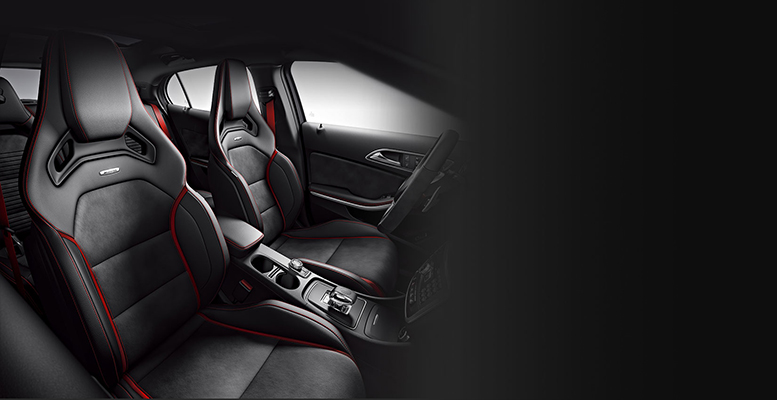

Performance seats upholstered in ARTICO man-made leather/DINAMICA microfiber for driver and front passenger, with more strongly contoured seat shape for enhanced lateral support and with integral head restraints, red designo safety belts.
The AMG instrument cluster with 2-tube design and central color display, AMG main menu and RACETIMER is on hand to provide information to the driver. On opening the door, the driver is greeted by the AMG start-up screen.
The trim of the instrument panel is of brushed aluminum and, in tandem with the brushed stainless-steel AMG front door sills, emphasizes the high-grade, exclusive ambiance inside the GLA 45 AMG.
The AMG DRIVE UNIT is the central control unit for all functions relating to driving dynamics.
A special feature designed to enhance dynamic performance and driving enjoyment is so-called "Momentary M mode". In C and S mode, this enables the driver to activate manual mode ("M") without having to remove a hand from the steering wheel, by pressing the "up" or "down" shift paddle once. In Momentary M mode the driver experiences the dynamism and performance of gear-shifting in manual mode in all of the automatic driving programs, with automatic up- and down-shifting into the bargain. This allows the driver to devote his full attention to the vehicle's impressive performance.
The shift times in manual mode "M" and in Sport mode "S" are similarly sporty in character to those of the SLS AMG GT super sports car. Briefly and precisely interrupting ignition and injection under full load leads to even faster gearshifts with a more emotional sound than ever. In "C" mode (Controlled Efficiency), tangibly soft transmission and engine characteristics support a fuel-efficient and comfort-oriented driving style. The ECO start/stop function is also active in "C" mode.
With a fuel consumption of 7.5 liters per 100 kilometers (NEDC combined; CO2: 175 g/km) and compliance with EU 6 emissions standards the GLA 45 AMG once more provides proof that at Mercedes‑AMG maximum performance does not come at the expense of environmental compatibility. The GLA 45 AMG also holds the pole position with regard to driving dynamics: it accelerates from zero to 100 km/h in 4.8 seconds and reaches a top speed of 250 km/h (electronically limited). Thanks to the combination of standard-fit performance-oriented AMG 4MATIC all-wheel-drive and the AMG SPEEDSHIFT DCT 7-speed sports transmission, the GLA 45 AMG impresses with its equally sporty and efficient drive system concept.
Powertrain FeaturesBest in class: the engine of the GLA 45 AMG fully lives up to this claim, as a look at the figures shows. The AMG 2.0-liter turbo engine is the most powerful series-production four-cylinder turbo engine in the world. It produces 265 kW (360 hp) of power and develops a peak torque of 450 Newton meters. A power density of 133 kW (181 hp) puts the AMG high-performance turbo engine on a par with the world's most powerful super sports cars.
Development of the high-performance turbo engine, which is part of the BlueDIRECT family, placed emphasis on a sustainable reduction in particulate emissions. Consequently the GLA 45 AMG today already complies with the second stage of the EU 6 emissions standards coming into effect in 2017. The AMG 2.0-liter four-cylinder turbo engine features spray-guided direct petrol injection with piezo injectors positioned centrally in the four combustion chambers and an injection pressure of 200 bar. The combination of multiple fuel injection and multiple spark ignition improves fuel economy and significantly increases the thermodynamic efficiency, leading to low exhaust emissions. The injection system's outstanding flexibility also ensures a high degree of freedom in terms of application. There are up to five injections per combustion cycle in the cold-start and warm-up phase, which is so crucial for emissions. One of the key factors for in-engine particulate reduction is a reduction of the individual injection quantities.
Further highlights of the AMG 2.0-liter four-cylinder turbo engine:
› Gravity-die sand-cast all-aluminum crankcase
› Weight-optimized crank mechanism with forged steel crankshaft
› Forged pistons with friction-optimized piston rings
› NANOSLIDE cylinder liner technology
› Air-to-water intercooling system
› Alternator management
› ECO start/stop function
The AMG SPEEDSHIFT DCT 7-speed sports transmission in the GLA 45 AMG features three distinct transmission modes, a double-declutching function dependent on the transmission mode and a RACE START function for optimum acceleration. The strengths of the dual-clutch transmission include spontaneous gear shifts without loss of tractive power, a tailor-made control strategy based on the AMG SPEEDSHIFT functions, extremely smooth gear shifts, and a high level of efficiency.
The shift times in manual mode "M" and in sport mode "S" are similarly sporty in character to those of the SLS AMG GT super sports car. Quick and precise retardation of the ignition and suppressing injection under full load lead to even faster gear shifts in "M" and "S" modes, with a more thrilling sound. The transmission control fully utilizes the benefits of the direct injection technology right up to the physical limits: the quicker engine response ensures that injection is suppressed with even more precision. The effect: the shift speed and an emotional sound experience have strong potential to fascinate. Another special feature designed to enhance dynamic performance and driving pleasure is the so-called "Momentary M mode" – as seen in the SLS AMG Coupé Black Series super sports car.
In "C" mode (Controlled Efficiency), smooth transmission and engine characteristics support a fuel-efficient and comfort-oriented driving style. In addition, the ECO start/stop function is active in "C" mode.
One of the keys to agile handling is the axle technology: for enhanced driving dynamics, the McPherson front axle on the GLA 45 AMG is fitted with stiffer steering knuckles and new elastokinematics. The four-link rear axle has also been newly developed. Stability and precision of handling are enhanced by the optimized elastokinematics and the rigid connection between the subframe and the body. The AMG sports suspension with specially tuned spring/damper units and bigger anti-roll bars provides for high lateral acceleration and reduced body roll in fast double bends. An AMG performance suspension with firmer spring and damper tuning is available as an optional extra.
The GLA 45 AMG comes with variable AMG 4MATIC all-wheel drive as standard. In developing this all-wheel-drive system, the focus was firmly on performance and dynamic spirit. The all-wheel-drive system transfers the engine power to the road optimally and provides perfect traction – regardless of the weather conditions. It also elevates driving dynamics to the highest level.
The entire drive unit boasts a weight-saving and compact design: the power take-off unit (PTU) is fully integrated into the 7-speed sports transmission and handles the power transfer to the rear drivetrain. A two-part propeller shaft sends the power of the engine to the rear axle as well. In the interests of favorable weight distribution, an electro-hydraulically controlled multiple-disc clutch is integral with the rear-axle differential. The multiple-disc clutch control detects slip at the front axle. A hydraulic pump instantaneously presses the discs together and channels the engine torque to the rear wheels as necessary. All this takes place without the driver noticing. Power distribution is fully variable: during normal driving the GLA 45 AMG uses front-wheel drive for optimal efficiency. When required by the driving situation, the variable all-wheel-drive system splits the torque between the front and rear axles up to a ratio of 50:50 percent.
Typically for AMG, the Electronic Stability Program is configured as a three-stage ESP®. The GLA 45 AMG comes with three transmission modes: "ESP ON", "SPORT Handling Mode" and "ESP OFF" – enabling the driver to vary dynamic performance according to individual requirements at the push of a button. ESP® Curve Dynamic Assist is likewise included as standard. During dynamic cornering, imperceptible braking intervention on the rear inside wheel creates a defined yaw moment about the vertical axis. The effect: the GLA 45 AMG turns in precisely and controllably at all times while unwelcome understeer is prevented.
The AMG speed-sensitive sports steering with specific, speed-dependent power assist ensures high steering precision and agility. The AMG high-performance braking system with vented, cross-drilled brake discs all-round and grey-painted brake calipers provides for spontaneous and reliable deceleration. Red brake calipers are available as an optional extra.
PERFORMANCE | |
Top speed | 250 km/h (Electronically Limited) |
ACCELERATION | |
0 - 100 km/h | 4.8 s |
Fuel type | Super Plus |
MIN urban fuel consumption | 9.9 l/100 km |
MIN extra-urban fuel consumption | 6.1 l/100 km |
MIN combined fuel consumption | 7.5 l/100 km |
MIN CO2 emissions | 175 g/km |
Efficiency class | D |
ENGINE SPECIFICATIONS | |
Number of cylinders/arrangement | L4 |
Number of valves per cylinder | 4 |
Displacement (bore x stroke) | 1991 cc (83.0 mm x 92.0 mm) |
Rated output | 265 kW (360 hp) at 6000 rpm |
Rated torque | 450 Nm at 2250-5000 rpm |
Governed maximum speed | 6500 rpm |
Compression ratio | 8.6 : 1 |
EXHAUST | |
Emissions standard | EURO 6 |
DRIVETRAIN | |
Drive type | Permanent four-wheel drive |
Clutch | Automatic |
Type | Dual multi-disc clutch (wet) |
Operation | Electro-Hydraulic |
Transmission | AMG SPEEDSHIFT DCT 7-Speed Sports Transmission |
1st Gear | 3.86 |
2nd Gear | 2.43 |
3rd Gear | 2.67 |
4th Gear | 1.05 |
5th Gear | 0.78 |
6th Gear | 1.05 |
7th Gear | 0.84 |
1st reverse gear | 3.38 |
Final-drive ratio | 4.13 |
SUSPENSION | |
Steering | Speed-dependent, Electrical power assisted |
Steering gear type | Rack-and-pinion |
Front wheel or axle location | McPherson |
Rear wheel or axle location | Independent suspension |
Front/rear springs | Coil spring, Double-tube gas-pressure/ Coil spring, Single-tube gas-pressure |
Front/rear stabilizer type | Tubular torsion bar |
Brakes | Discs, internally ventilated and perforated |
WHEELS | |
front | 8.0 J x 19 |
rear | 8.0 J x 19 |
Front wheel offset | 43.5 mm |
Rear wheel offset | 43.5 mm |
TIRES | |
front | 235/45 ZR 19 99Y XL |
rear | 235/45 ZR 19 99Y XL |
DIMENSIONS & WEIGHT | |
EXTERIOR | |
Vehicle length | 4445 mm |
Vehicle height w. tailgate open | 2019 mm |
Vehicle height when ready to drive | 1479 mm |
Vehicle width | 1804 mm |
Vehicle width front door open | 2851 mm |
Vehicle width incl. both mirrors | 2022 mm |
Wheelbase | 2699 mm |
Turning circle | 11.84 m |
WEIGHTS | |
Kerb weight (EU) | 1585 kg |
Perm. gross vehicle weight | 2105 kg |
Payload (EU) | 520 kg |
Front axle load at kerb weight (EU) | 950 kg |
Rear axle load at kerb weight (EU) | 635 kg |
Max. roof load | 100 kg |
CAPACITIES | |
Fuel tank capacity | 56 l |
of which reserve | 8 l |
